Popis

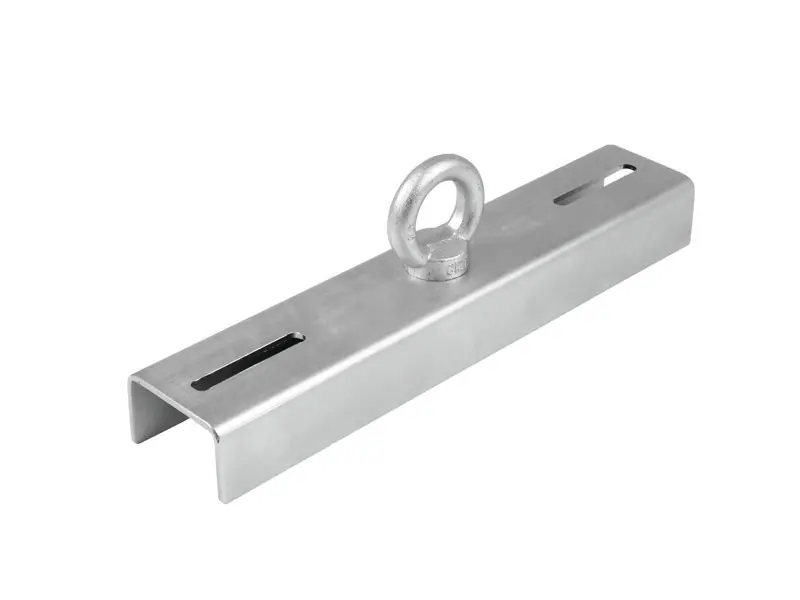

U-profile for hanging truss from the ceiling. Designed for rectangular trusses from 25 to 40 cm. Thanks to its adjustable system, just one adapter can be used for different trusses. M20 ring bolt with washer and self-locking nut. With two TPC-50 clamps.
Max. load WLL (4-fold): 500 kg
Max. load BGV C1 (8-fold): 250 kg
Max. load BGV C1 (10-fold): 200 kg
Max. load BGV C1 (12-fold): 150 kg
Material
Strength: 3.5 mm
Hole (LxW): 80 x 11.5 mm
Dimensions (LxWxH): 400 x 80 x 50 mm
Weight (without clamps): 2.5 kg
